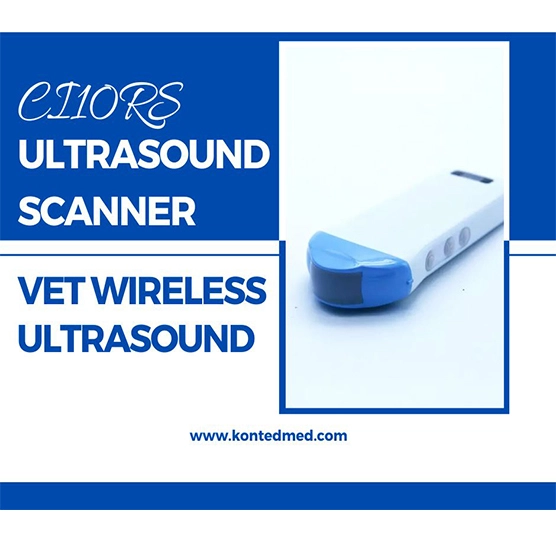

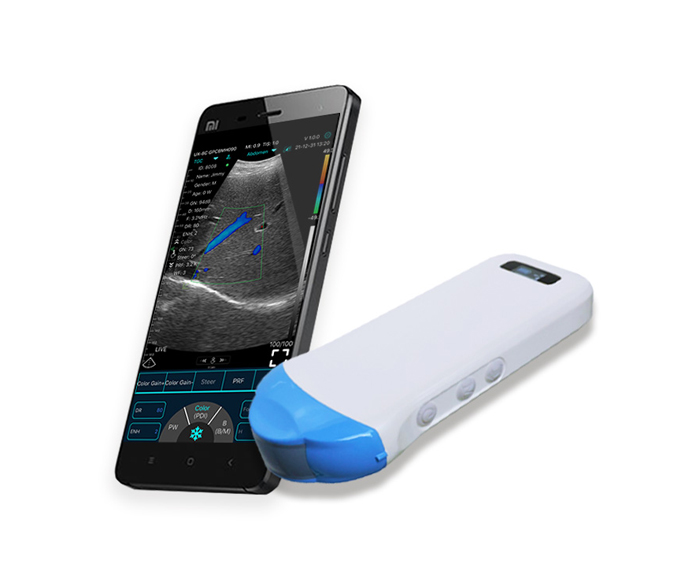

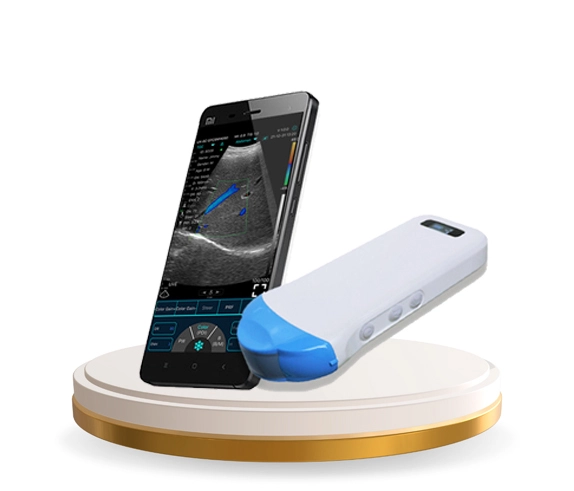

Gen4 pro C10RS with 3 activation buttons on the probe body, scan frequency 5-7Mhz, 192 elements color Doppler wireless microconvex probe can quickly check abdominal organs, and is suitable for neonatal ultrasound, pediatric ultrasound and small animal ultrasound. Konted as one of the most professional handheld ultrasound companies in China,assure the quality of our handheld wireless ultrasound.
Product specs:
| Probe | Wireless probe |
| Elements | 192 |
| Frequency | 5/7Mhz |
| Depth | 60-160mm |
| Host | Tablet, Smart phone, PC |
| Connection | 802.11.n WIFI(AP) |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length, Area, Circumference, GA(CRL, BPD, GS, FL, HC, AC) , EFW(BPD, FL) |
| B+M: Heart rate, Time, Distance | |
| B+PW: Velocity, Heart rate(2), S/D, Depth | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display Mode | B, B/M, color, PW, PDI |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/5G/450Mbps |
| Channel | 64 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | English, Chinese,Russian, German, Italian, Spanish, Portuguese |
| Power | by built-in 4200mAh battery |
| Power Consumption | 4W (probe run) /1.5W (probe stop) |
| Battery Replaceable | Yes |
| Battery Last | 3hours (Working time), 12hours (Stand by time) |
| Charger | Wireless charger |
Help discover where and why problems occur.
Guide biopsies of abnormal masses or removal of fluid for analysis.
Optimum diagnosis is approximately 20 days after the last estrous cycle
