Color Abdomen Ultrasound

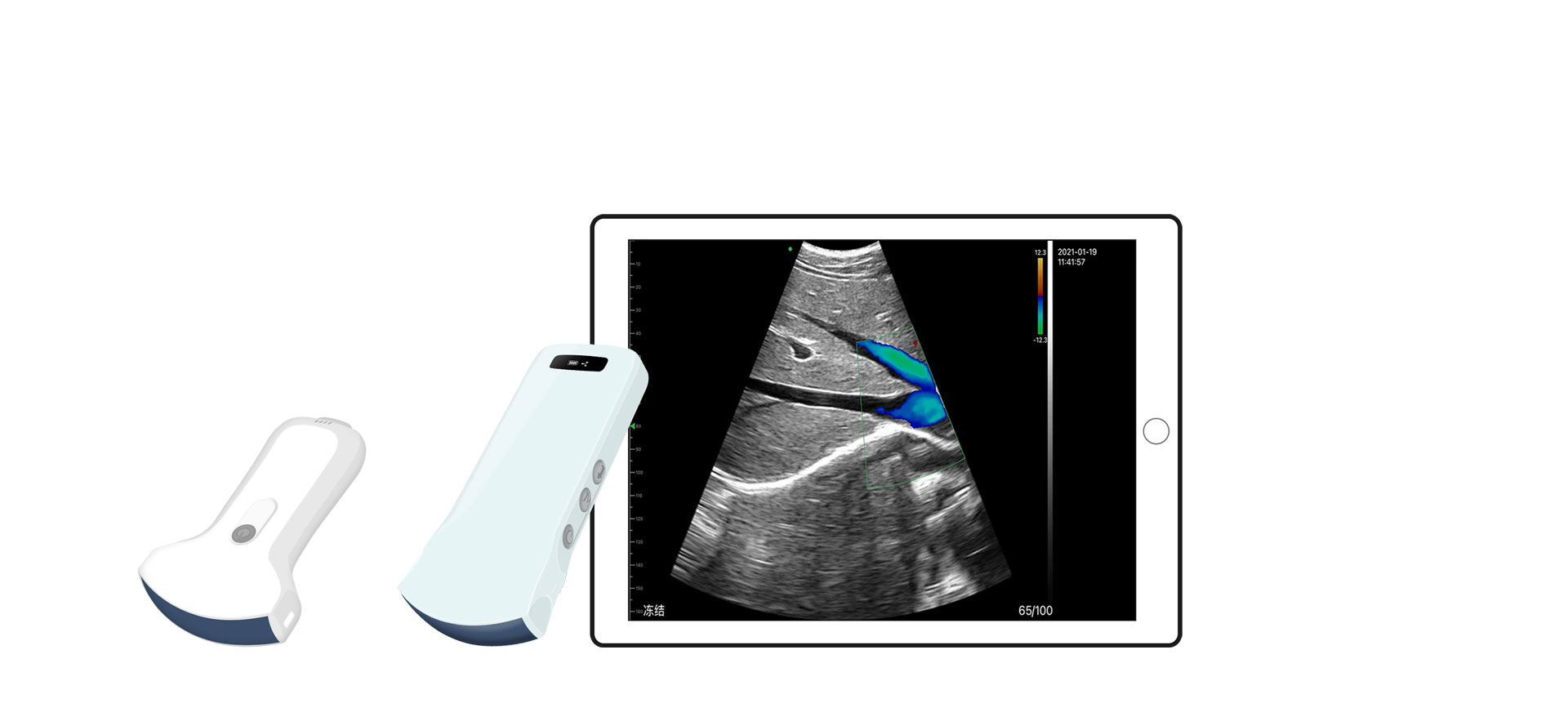

Konted handheld wireless color flow doppler imaging ultrasound probe can perform ultrasound diagnosis of abdomen, with B, B/M, Color, PW, PDI modes.

Software of colour flow doppler ultrasound is compatible with IOS Android, Windows system, and can work on different devices.

Probe of color flow imaging ultrasound is easy to carry and weighs only 200g, enabling doctors to diagnose patients at any time and anywhere.

Konted as one of the most technical handheld ultrasound device manufacturers, provide all kinds of wifi ultrasound.

Color Flow Doppler Imaging Ultrasound Types

C10MT Pro USB&Wifi Convex Ultrasound Probe

Learn More

C10MT USB&Wifi Convex Ultrasound Probe

Learn More

C10UR Color Abdomen Ultrasound USB&Wifi Basic Convex Probe

Learn More

C10CT Color Abdomen Ultrasound HD Convex Probe

Learn More

C10RS Color Abdomen Ultrasound HD Micro-Convex Probe

Learn More





Colour Flow Doppler Ultrasound Differences

C10UR, C10CT and C10RS are colour flow doppler ultrasound probes that use colour flow imaging to check Abdominal, Emergency Cardiac, Urology, Obstetrics/Gynecology, Lung, Kidney etc. They are color flow doppler ultrasound, C10UR and C10CT have the same specifications, but different elements,C10UR element is 128, C10CT element is 192. Their Scan freq is 3.5-5MHz, their scan depth is 90-305mm, their radius is R60. As for the specification of C10RS, element is 192, scan freq is 5-7MHz, scan depth is 90-160mm, radius is R20.

model	C10MT	C10MT PRO	C10UR	C10CT	C10RS
element	128	192	128	192	192
Scan Freq	3.5-5MHZ	3.5-5MHZ	3.5-5Mhz	3.5-5Mhz	5-7Mhz
Scan Depth	90-160-240-300mm	90-160-240-300mm	90-160-220-305mm	90-160-220-305mm	90-160mm
Radius	R60	R60	R60	R60	R20
Application	Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung,	Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung,	Abdomen,Gynecology,Obstetric,Cardiac,Urology,Kidney,Lung	Abdomen,Gynecology,Obstetric,Cardiac,Urology,Kidney,Lung	Abdominal Emergency Cardiac Urology Obstetrics/Gynecology Lung Kidney
Connection	WIFI & USB	WIFI & USB	WIFI	WIFI	WIFI
Waterproof Level	IP68	IP68	IPX5	IPX5	IPX5
Anti-skid design	Yes	Yes	N/A	N/A	N/A
Cooling coating	Yes	Yes	N/A	N/A	N/A
Charging while working	Yes	Yes	N/A	N/A	N/A
Only sell to local agent,not sell on Alibaba, ebay, Amazon or sellto doctors directly	Yes	Yes	N/A	N/A	N/A
