One Probe Multipurpose Ultrasound

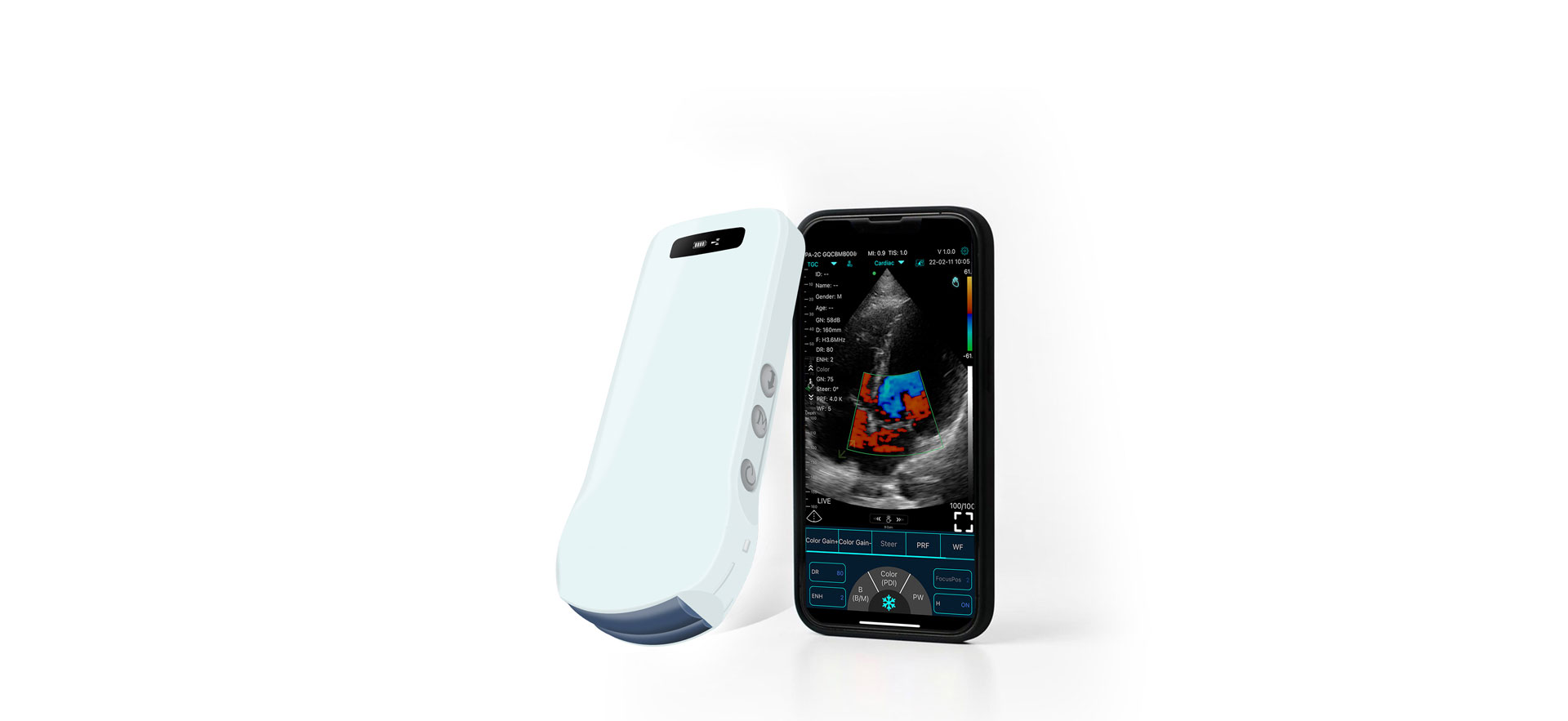

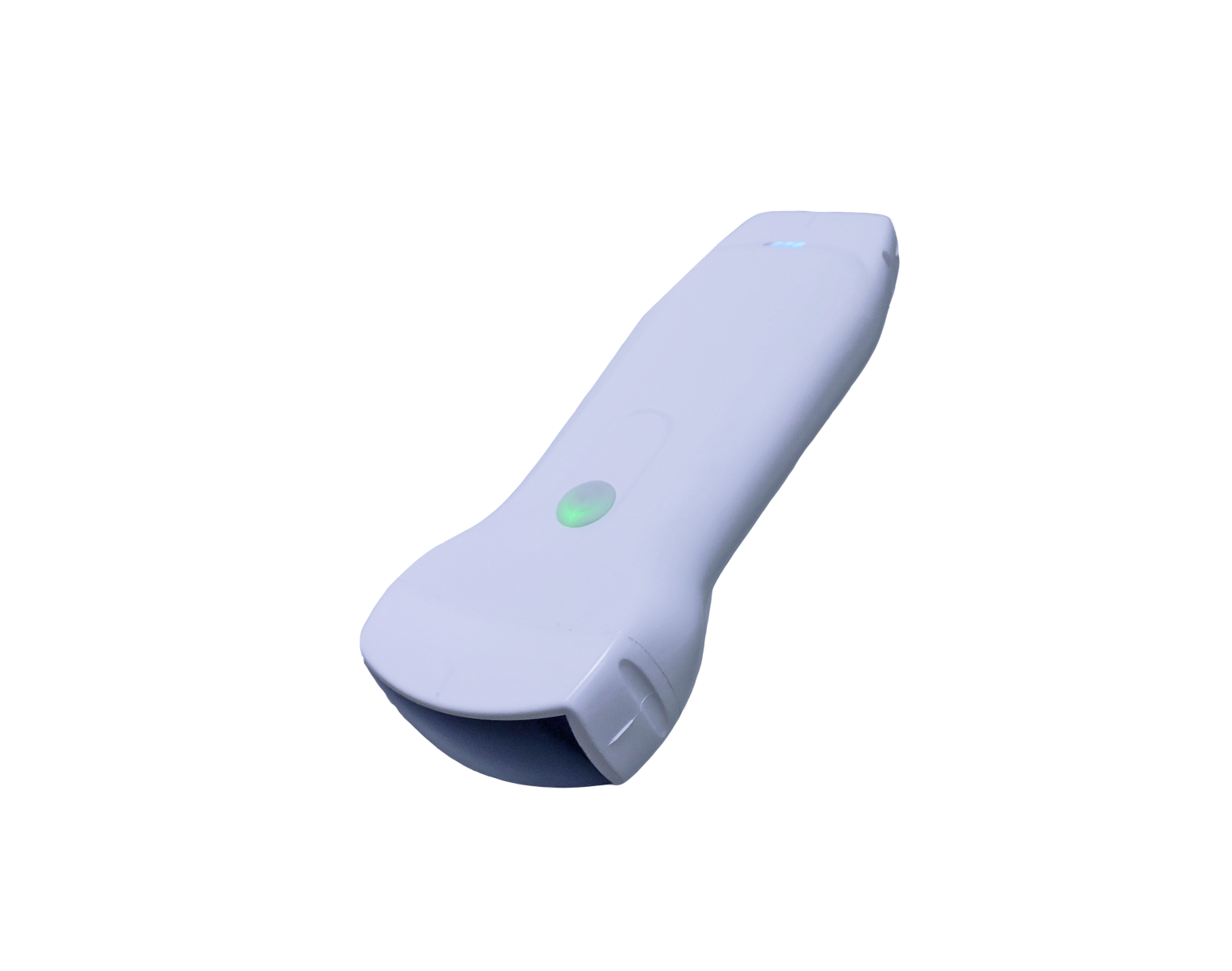

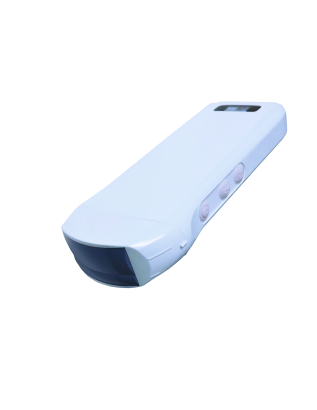

Handheld ultrasound is providing convenience for doctors. Multifunctional ultrasound can meet doctors' needs for ultrasonic scanning of various parts of the body. Konted designed C10T single probe multi-functional ultrasound sensor and C10RL dual probe multi-functional ultrasound sensor for doctors. C10T is a curved probe(convex probe+linear probe+ cardiac preset 3 in 1 probe), C10RL is a probe with a convex array at one end and a linear array at the other end. They can all scan abdominal organs, superficial parts, and basic cardiac examinations.

Model	C10T	C10RL
Photo Reference
Scanning system	Convex+Linear+Cardiac	Convex+Linear+Cardiac
Transducer	Single head	Dual head
Radius	Convex:R45	Convex: R45
Footprint	Linear: L45	Linear: L25
Frequency	2.5/3.5Mhz 3.5/5Mhz 7.5/10Mhz	2.5/3.5Mhz 3.5/5Mhz 7.5/10Mhz
Depth	90-160mm 90-305mm 20-80mm	90-160mm 90-305mm 20-100mm
Elements	128	128
Application	Abdomen Obstetrics / Gynecology Cardiac Kidney Urology Breast Thyroid MSK Vascular Pediatrics Carotid Small Parts	Abdomen Obstetrics / Gynecology Cardiac Kidney Urology Breast Thyroid MSK Vascular Pediatrics Carotid Small Parts
Connection	Wifi	Wifi & USB
Display mode	B,B/M,Color Doppler, PW, Power Doppler	B,B/M,Color Doppler, PW, Power Doppler
Battery Capacity	4200mAh	2800mAh
Charging method	Wireless charging/ Micro USB cable	Wireless charging/Type-C cable
Battery Replaceable	Yes	Yes(engineer)
Battery last	3-4 hours(working time), More than 12 hours(stand by time)	3 hours(working time), Supporting work while charging
Size	156mm×70mm×30mm	125(h)x70(w)x20(d) mm
Weight	227g	90g
Gross Weight	1.1kg	0.8kg
Packing size	240*235*100mm	185(h)x105(w)x55(d) mm
SOFTWARE CONTROLS	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF   WF Focus Mode  B,B/M,Color Doppler,PW,Power Doppler Biopsy Page Left/Right Up/Down 8TGC	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF   WF Focus Mode  B,B/M,Color Doppler,PW,Power Doppler Biopsy Page Left/Right Up/Down 8TGC
