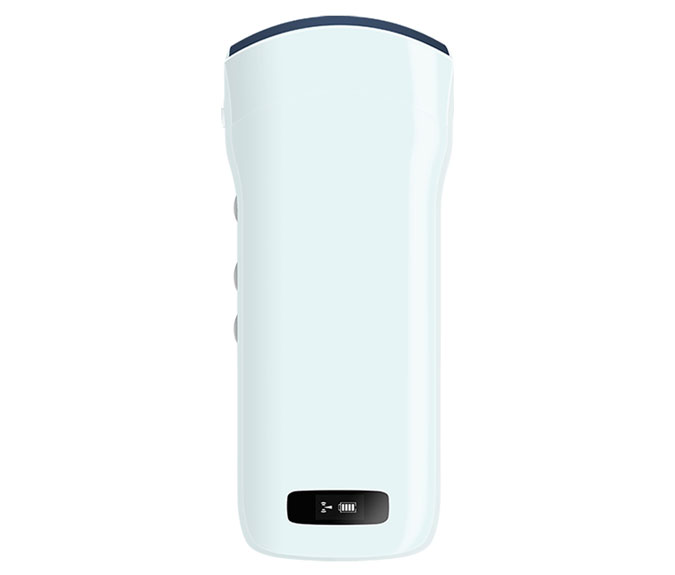

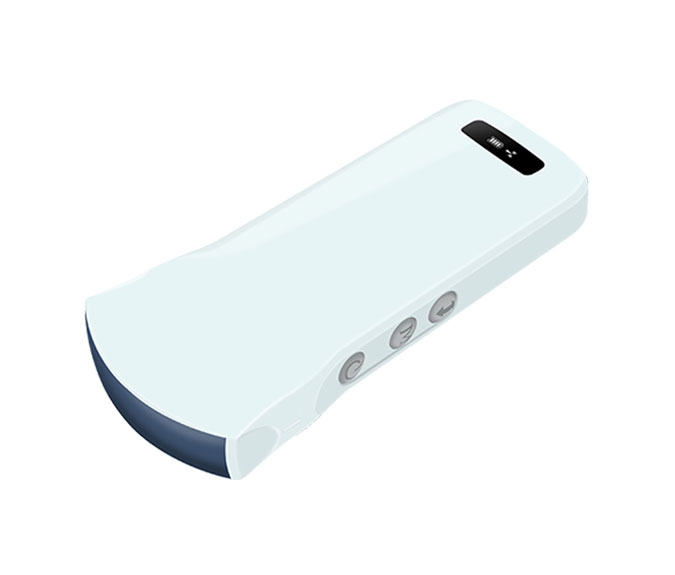

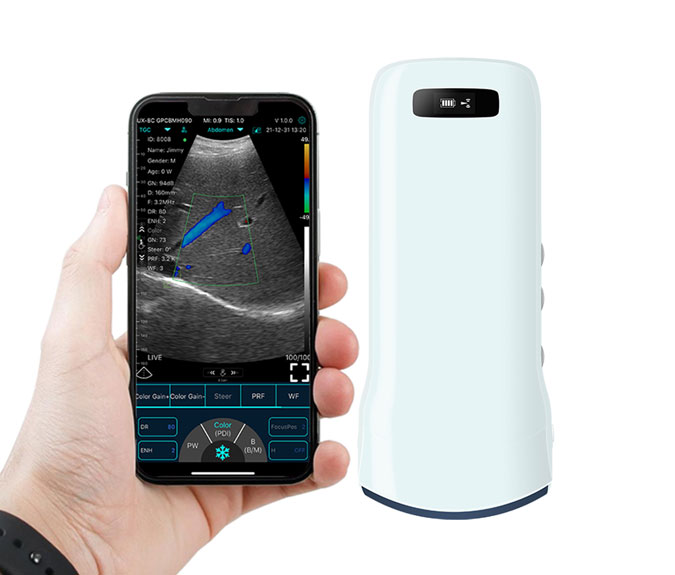

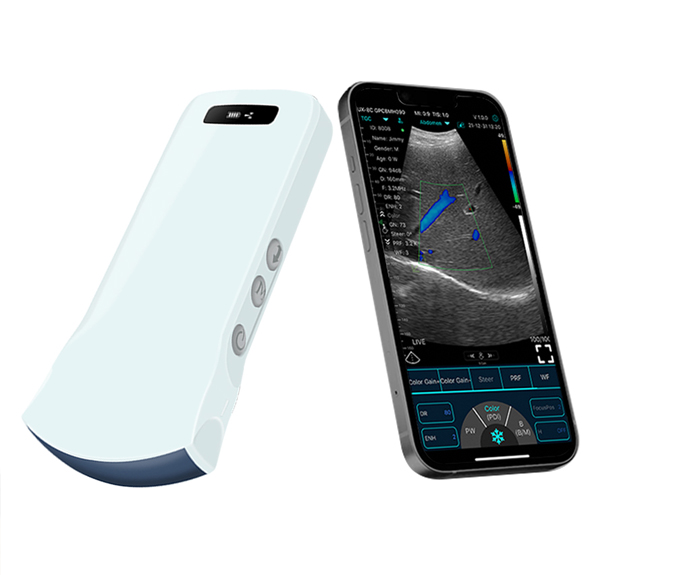

Gen4 pro C10CT ultrasonic probe was launched in 2018, with 3 activation buttons on the probe body, scan frequency 3.5-5Mhz, 192 elements color Doppler wireless convex probe can provide fast HD ultrasonic images for gynecologists, urologists and hepatobiliary surgeons. Konted as one of the most techinical handheld ultrasound device manufacturers in China, provide wifi ultrasound probe with high quality.
Product specs:
| Probe | Wireless probe |
| Elements | 192 |
| Frequency | 3.5/5.0mhz |
| Depth | 90-305mm |
| Host | Tablet, Smart phone, PC |
| Connection | 802.11.n WIFI(AP) |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length, Area, Circumference, GA(CRL, BPD, GS, FL, HC, AC) , EFW(BPD, FL) |
| B+M: Heart rate, Time, Distance | |
| B+PW: Velocity, Heart rate(2), S/D, Depth | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display Mode | B, B/M, color, PW, PDI |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/5G/450Mbps |
| Channel | 64 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | English, Chinese,Russian, German, Italian, Spanish, Portuguese |
| Power | by built-in 4200mAh battery |
| Power Consumption | 4W (probe run) /1.5W (probe stop) |
| Battery Replaceable | Yes |
| Battery Last | 3hours (Working time), 12hours (Stand by time) |
| Charger | Wireless charger |
