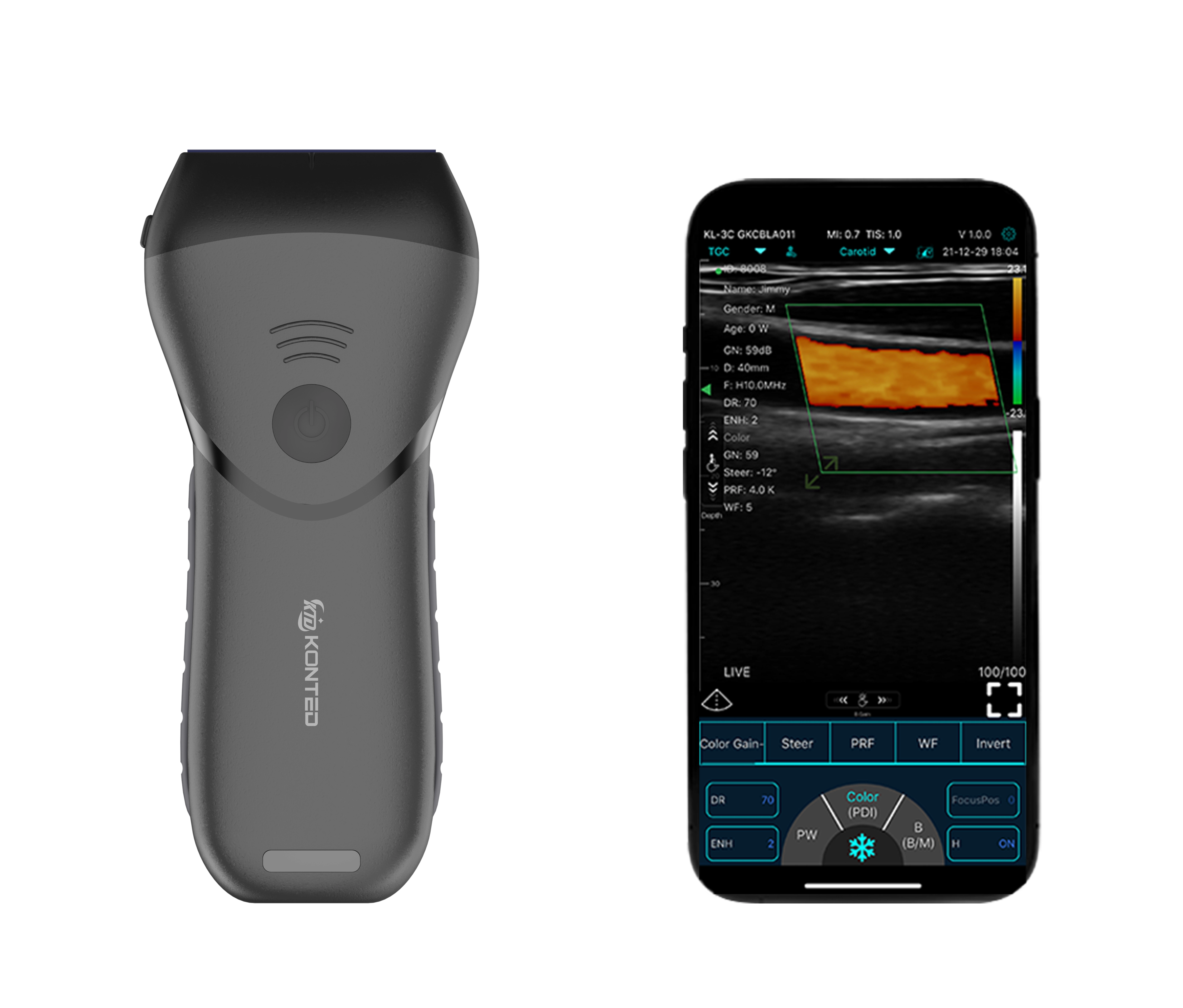

On the basis of C10CX, we have upgraded it and named it C10CX pro. We have added a dual battery design, increased battery life, and added a 4-sided anti slip design, achieving a waterproof level of IP68. Konted C10CX Pro is a high-frequency linear array wireless ultrasound scanner designed by Konted for the facial aesthetics market.
Product specs:
| Probe | Wireless linear probe |
| Elements | 192（MX PRO） 128(MX) |
| Frequency | 7.5-10Mhz |
| Depth | 20-40-60-100mm |
| Dimensions | 140*62*30mm |
| Weight | 228g |
| Presets | Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve |
| Host | IOS/Android/Windows, Tablet, Smart phone, PC |
| Connection | WiFi |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote |
| Measurement | B: Length, Area, Circumference, Angle, Trace, Distance |
| B+M: Heart rate, Time, Distance | |
| B+PW:Velocity,Heart rate(2), S/D, Depth | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display Mode | B, B/M, Color, PW, PDI, B+B |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/5G/450Mbps |
| Channel | 64 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Power | by built-in 4200mAh battery |
| Battery Replaceable | Yes |
| Battery Last | 3hours (Working time), 12hours (Stand by time) |
| Charger | Wireless charger, USB cable |
| Cooling coating | Yes |
| Waterproof | IP68 |
| Anti-skid design | Yes 4 sides |
3hours {Working time],12hours {Stand by time).
Upgraded version of C10Cx.
Connect Android/10S/Windows Smartphone, tablet, PC.
Waterproof level IP68.
